Model 1200 In-line Turbine Flow Meter
The Blancett Model 1200 In-line turbine flow meter was engineered for applications in high corrosive environments. Developed for use in petrochemical and other process industries with liquid chemical flows, the Model 1200 Turbine provides accuracy and durability in aggressive industrial environments.
- Offers accurate and repeatable flow measurement
- Cost-effective solution for turbine flow meter applications
- Long service life in severe operating environments
- 303 stainless steel body and internal wetted parts, with two Type 440 stainless steel ball bearings.
- NIST traceable calibration
- Integrates electronically with B2800 Flow Monitor
Oil & Gas
Process or Industrial
Water & Wastewater Treatment
Parts, Accessories & Other Options

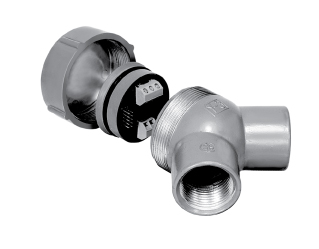

Converters More Info Less Info
The Blancett Frequency-to-Current (F-to-I) and Frequency-to-Voltage (F-to-V) converters are microprocessor-based devices designed to provide an analog output directly from a Blancett turbine flow meter. The converters measure and calculate the flow rate of a turbine flow meter and produce an analog output representative of that flow rate, in the form of a 4…20 mA or 0…5 VDC signal. If a converter is ordered with a flow meter, the two components ship from the factory calibrated as a system. If the converter is a replacement, the turbine meter's K-factor has changed, or the converter is being used with some other flow meter, then re-programming is possible with an optional Windows®-based software utility. The F-to-I and F-to-V converters were designed for use with Blancett flow meters, but in many cases they may be configured for use with other turbine meters. Please consult factory for details.Blancett Intellegent Frequency Converter F to I - F to V (SGN-DS-00938-EN) Blancett Overview Brochure (TRB-BR-00252-EN) Blancett Sensor-Transducer F-to-V or F-to-I Active Sensor Manual (SEN-UM-00084-EN) Blancett Signal Conditioner Intelligent Frequency Converter User Manual (SGN-UM-00283-EN) Impeller USB to DIC Converter Manual (CVT-UM-00208-EN)

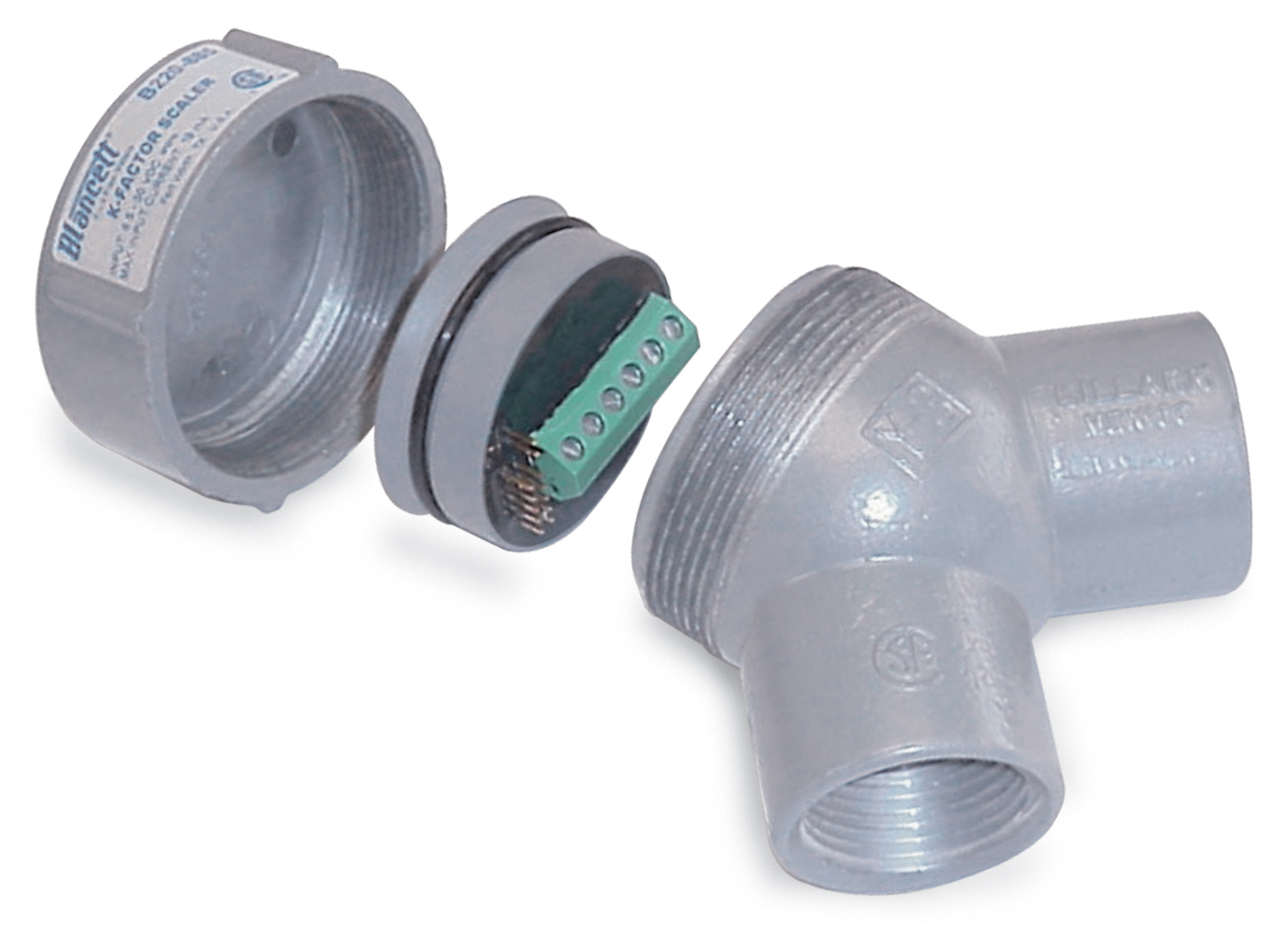

K-Factor Scaler (Blancett) More Info Less Info
The K-Factor Scaler converts a low level frequency output (such as the output from a turbine flow meter) into a scaled square wave output signal. This adjustable frequency divider converts or "scales" the turbine meter output into units of measurement needed for a particular application and recognized by almost any data collection device. The K-factor scaler provides an amplified signal, even when a frequency conversion is not required. This signal is more immune to electrical noise and capable of transmission over longer distances than a raw turbine meter output.Blancett B220-880 and B220-881 K Factor Scaler Manual (SGN-UM-00281-EN) Blancett B220-885 K-Factor Scaler & B220-900 Programming Software Kit Manual (SGN-UM-00282-EN) Blancett K-Factor Scaler Frequency Divider Product Data Sheet (SGN-DS-00937-EN) Blancett Overview Brochure (TRB-BR-00252-EN)
