15,000 PSI Type HP-15 High Pressure Control Valve
Features
- Wide range of interchangeable trims
- Choice of linear or quick opening trims
- ANSI Class III shutoff for sizes P-1 through P-9
- ANSI Class IV shutoff for sizes K through O
- Solid Stellite innervalve
- High pressure Autoclave fittings
Software
Specifications
Additional Specifications
Chemical Injection
Oil Production Rigs
Oil & Gas Meters
Process or Industrial
Product Resources
|
{{item.DocumentTypeName}} | {{item.Date}} |
Parts, Accessories & Other Options

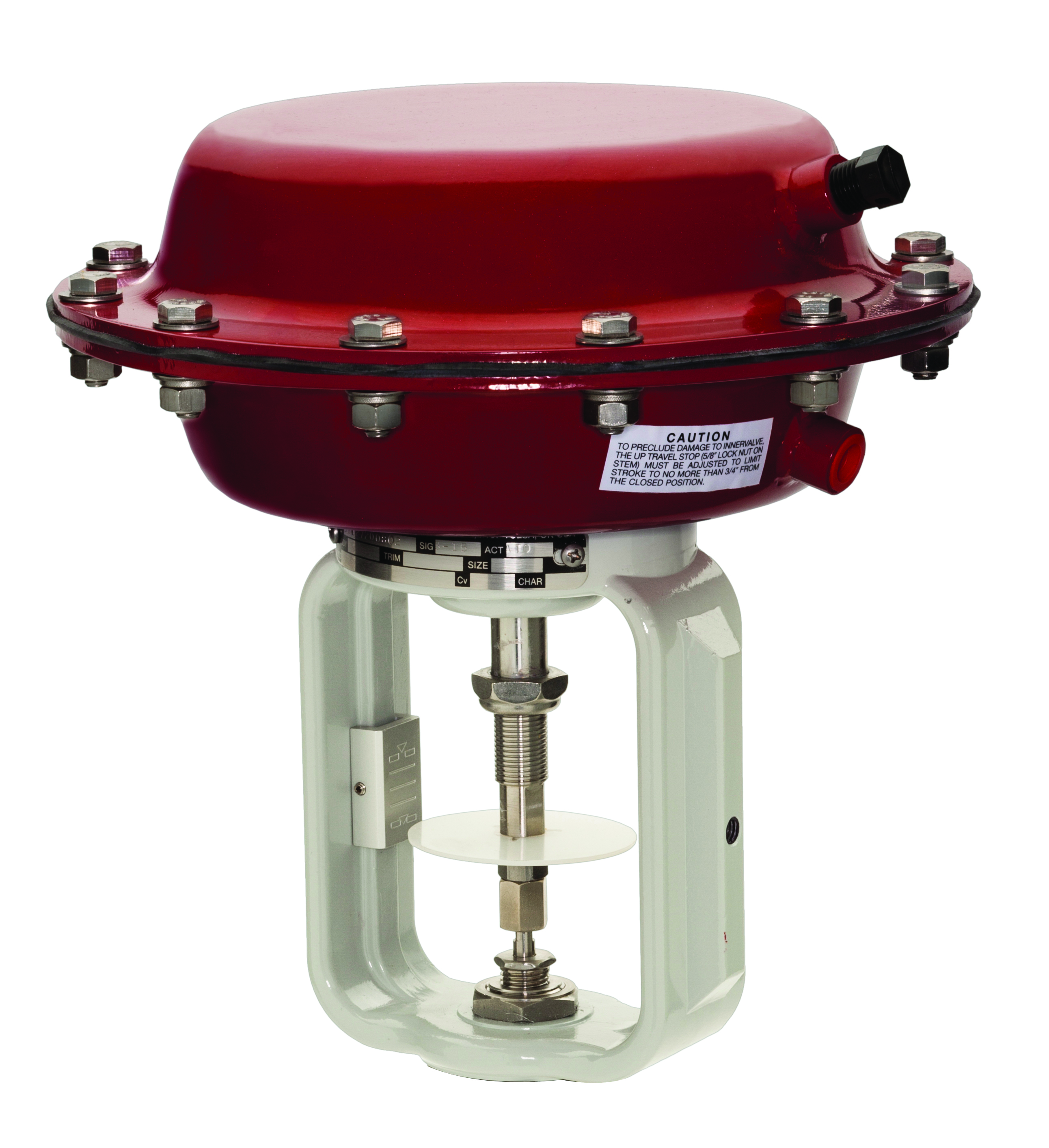

Actuator, Pneumatic (Type PA35) More Info Less Info
The PA35 actuator is a 35 square-inch pneumatic, multi-spring diaphragm actuator designed specifically to fit the RCV product line. The actuator can be used with a wide range of valve solutions from larger process valves to high pressure applications. The actuator is field reversible (without additional parts) allowing flexibility within the field. This actuator is available air-to-open or air-to-close. The actuator comes with either 3 springs for a 3…15 psi signal range or 6 springs for a 6…30 psi signal range. Both ranges are adjustable to match bench loading with the requirements for your application. The yoke and the actuator housings are made of carbon steel and coated with epoxy for corrosion resistance.
RCV Type PA35 Multi-Spring Pneumatic Actuator Product Data Sheet (RCV-DS-00618-EN) Valve Application Data Sheet Form (RCV-AS-02517-EN) Valve Order Specification Sheet
