TFX Ultra Transit Time Flow Meters
Dynasonics

TFX Ultra Transit Time Flow Meters

TFX Ultra transit time ultrasonic meters measure volumetric and energy flow of clean liquids, as well as those with small amounts of suspended solids or aeration, such as surface water or sewage. Ultrasonic waves are transmitted from outside the pipe into the liquid and propagate upstream and downstream.  The flow velocity is determined by the difference in the time of flight and is used to calculate the volumetric flow.

For energy metering, the temperature difference across heating and cooling equipment or zones is measured by dual RTD’s and is used with the volumetric flow to calculate the energy transfer.

Benefits

  • Reduced material cost by eliminating the need for in-line flanges, pipe fittings, strainers and filters
  • Reduced installation time
  • Reduced maintenance cost
  • Non-invasive measurement
  • No need to shut down the process for installation or maintenance due to clamp-on-sensor design

Features

  • Flow or energy metering
  • Bi-directional flow measurement system
  • No moving parts to wear or replace
  • Totalizer options include forward, reverse and net total
  • Modbus RTU or BACnet MSTP over EIA-485; Ethernet connections including BACnet/IP, EtherNet/IP, and Modbus TCP/IP protocols
  • Large, easy-to-read digital display
  • Rugged, aluminum enclosure provides a long service life in harsh environments
  • Certified for hazardous area installation in North America and Europe
  • UltraLink software utility enables in-field flow meter configuration, calibration and troubleshooting, via laptop PC

Software

Specifications

Size
1/2...120 in.
Temperature Range
-40…350 °F
Flow Range
1....40 ft/sec
Pressure Range
Per pipe specification PSI
Accuracy
±1 %

CAD and BIM

Additional Specifications

Application Examples

Water Treatment
Sewage
HVAC/Energy Monitoring
Power Generation
Food and Beverage Processing
Water Delivery

Industries
Building Automation / HVAC
Facility or Property Management
Irrigation
Petrochemical, Refining & Chemical Metering
Process or Industrial
Test Equipment & Services
Water & Wastewater Treatment

Product Resources

Document Name Document Type Last Updated
{{item.DocumentTypeName}} {{item.Date}}
To view some of the resources you will need Adobe Reader

Parts, Accessories & Other Options

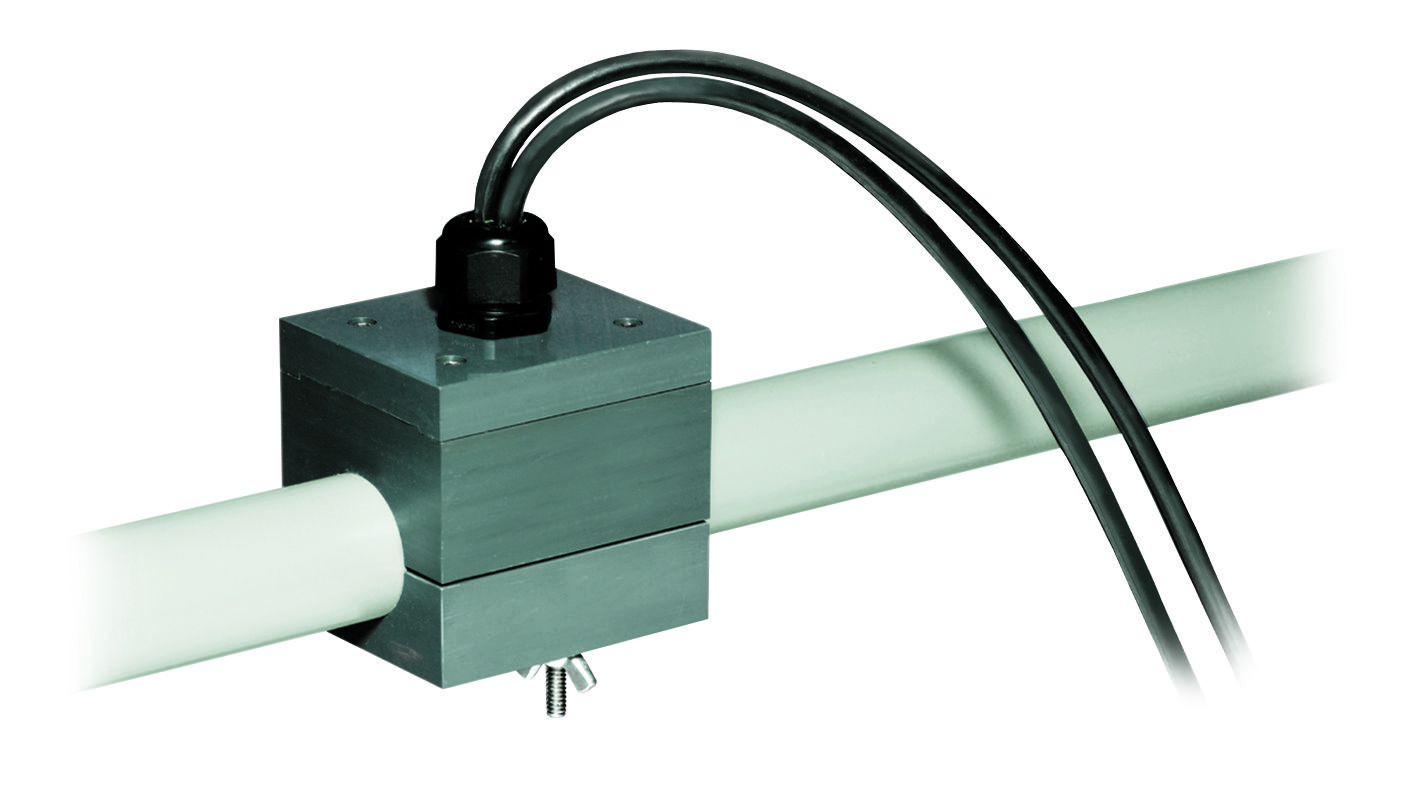

Adjustable Small Pipe Transducers (DTTSU)

Adjustable Small Pipe Transducers (DTTSU) More Info Less Info

Clamp-on transducers with integrated rail that works with a variety of pipe sizes and materials.  These transducers are suitable for pipes 2 inches (50 mm) and smaller with a temperature range of -40…194° F (-40…90° C).

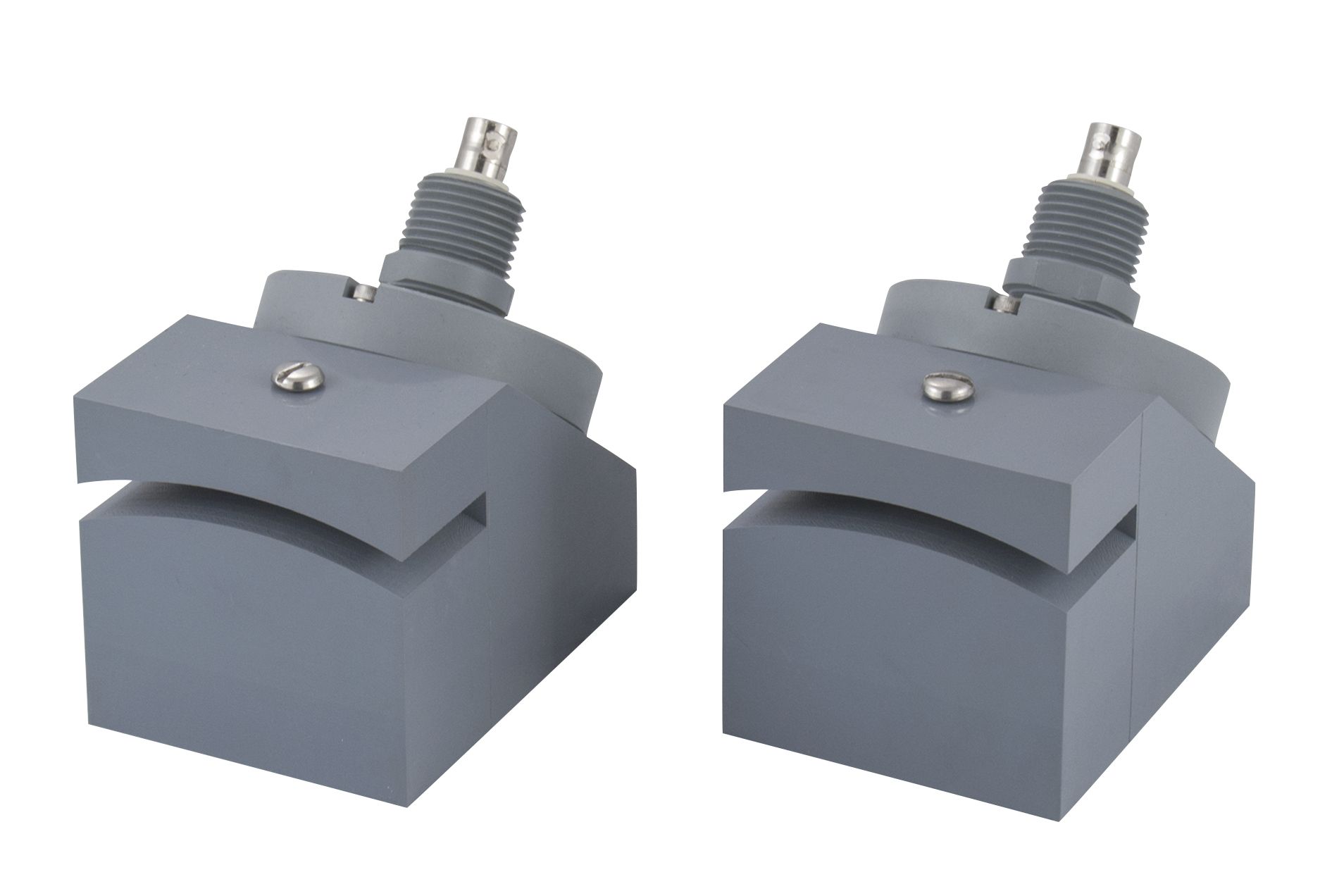

Large Pipe Transducers (DTTL)

Large Pipe Transducers (DTTL) More Info Less Info

Clamp-on transducers are suitable for pipes 10 inches (250 mm) and larger with a temperature range of -40…194° F (-40…90° C).  The lower and upper end of the pipe range varies with ultrasonic properties of the liquid and pipes.  Transducers are also available for submersible applications.

Transducers include stainless steel straps and can be ordered with flexible armored conduit.

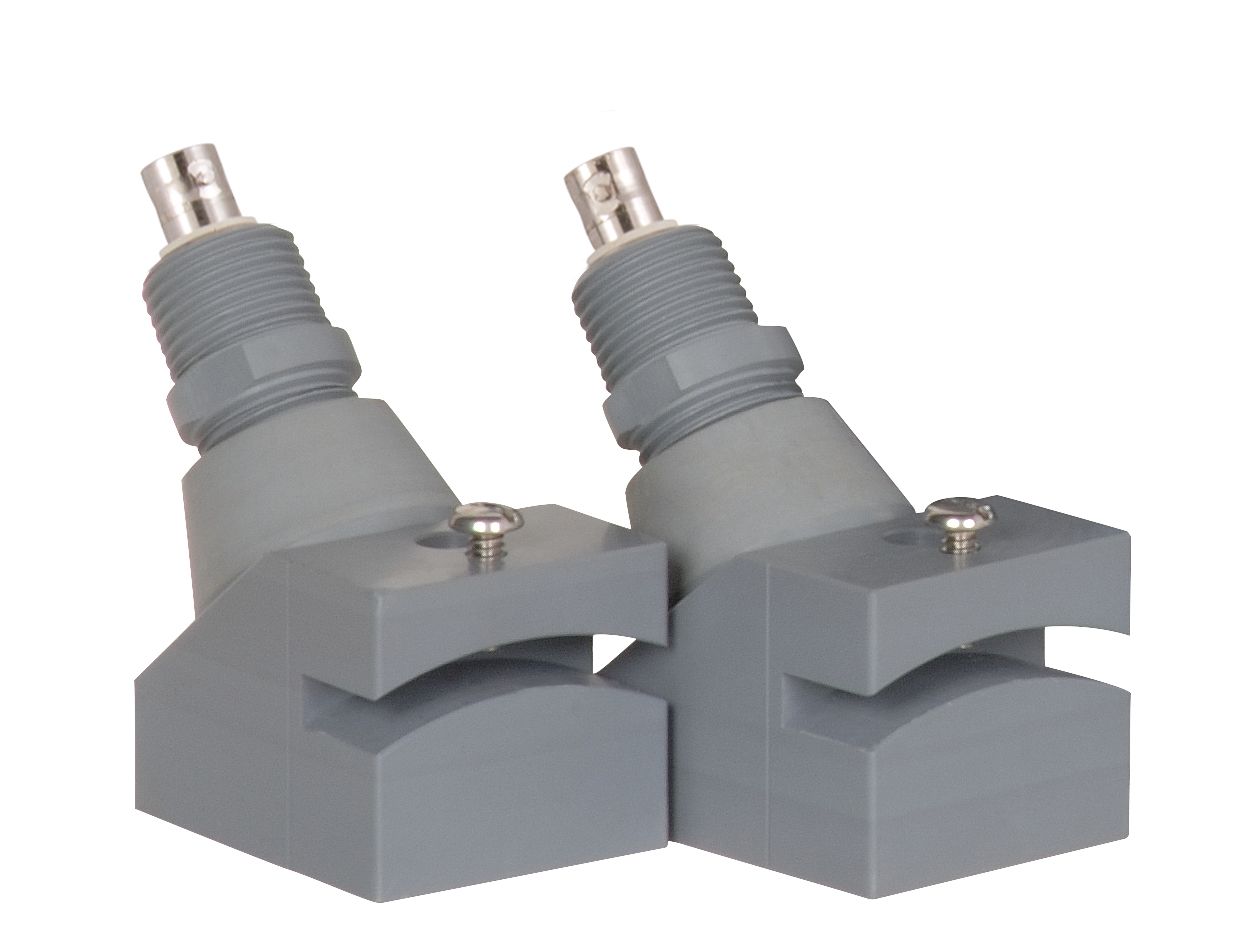

Medium Pipe CPVC Transducers (DTTN)

Medium Pipe CPVC Transducers (DTTN) More Info Less Info

Clamp-on transducers that are suitable for pipes 2.5 inches (65 mm) and larger with a temperature range of -40…194° F (-40…90° C).  The upper end of the pipe range varies with ultrasonic properties of the liquid and pipes.  Transducers are also available for submersible applications.

Transducers include stainless steel straps and can be ordered with flexible armored conduit.

CSA Certificate - Dynasonics DTTN Transducer Intrinsically Safe
Medium Pipe High Temperature Transducers (DTTH)

Medium Pipe High Temperature Transducers (DTTH) More Info Less Info

Clamp-on transducers that are suitable for pipes 2.5 inches (65 mm) and larger with a temperature range of -40…350° F (-40…176° C).  The upper end of the pipe range varies with ultrasonic properties of the liquid and pipes.

Transducers include stainless steel straps.

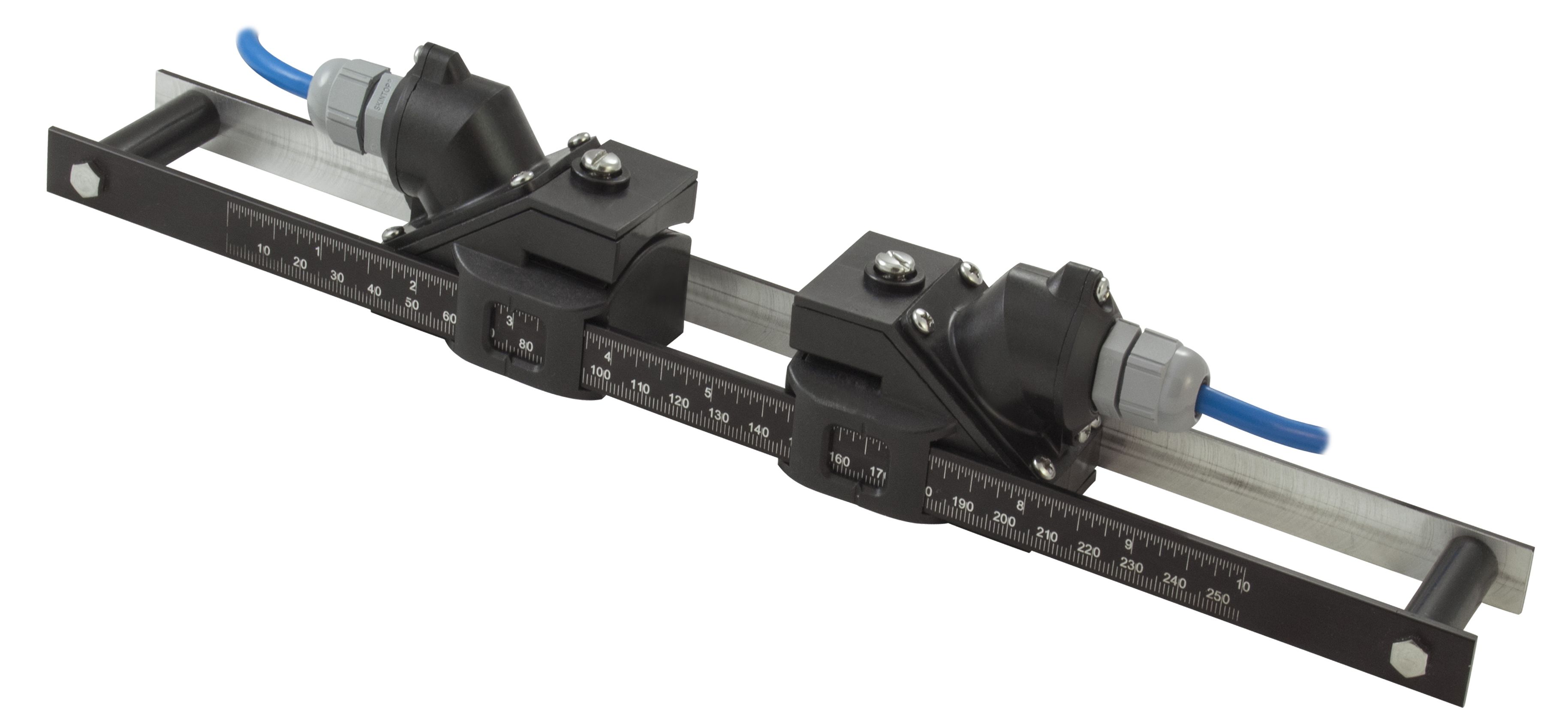

Medium Pipe PBT Transducers (DTTR)

Medium Pipe PBT Transducers (DTTR) More Info Less Info

Clamp-on transducers that are suitable for pipes 2.5 inches (65 mm) and larger, with a temperature range of -40…250° F (-40…121° C).  The upper end of the pipe range varies with ultrasonic properties of liquids and pipes.

Transducers include stainless steel straps and an optional rail kit is available to promote easier installation.  Transducers can be ordered with flexible armored conduit.

Small Pipe Fixed Transducers (DTTC)

Small Pipe Fixed Transducers (DTTC) More Info Less Info

Clamp-on transducers that are matched to the pipe size and material for easy installation when the pipe characteristics are known.  Select transducers for pipes ½ …2 inch with a temperature range of -40…194° F (-40…90° C).

Remote mount transducers include stainless steel straps and can be ordered with flexible armored conduit.

TFX Ultra RTD Kits More Info Less Info

TFX Ultra RTD kits for energy metering come in a variety of cable lengths and options, including clamp-on or insertion style.

Wall Thickness Gauge Kit (DWT-2) More Info Less Info

Handheld gauge to measure pipe wall thickness which is used in ultrasonic meter setup.  Wall thickness gauge is battery powered with automatic power off and includes a carrying case, transducers and couplant.
