14 in. Extended Bonnet, Type 884
Research Control Valve (RCV)

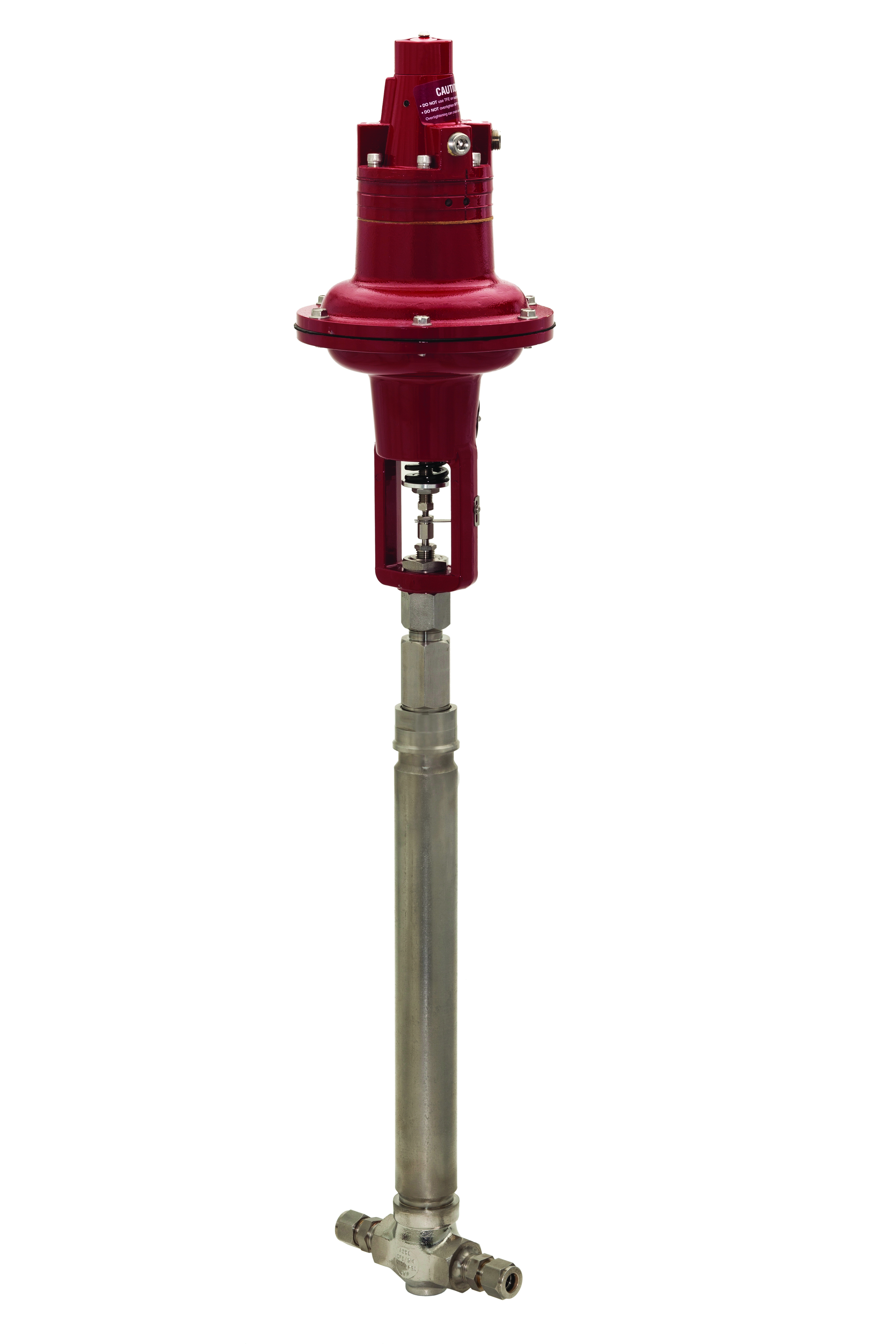

14 in. Extended Bonnet, Type 884

The extended bonnet globe control valve is available in a 14" length for 1/4" through 1" line sizes. It is specifically designed for control of extremely cold or hot fluids and gases. In cryogenic applications, the bonnet length serves to extend the packing area, as well as allow room for insulation around the body and bonnet.

Features

  • Wide range of interchangeable trims
  • Choice of linear or equal percent on most trims
  • TFE chevron ring packing
  • ANSI Class IV shutoff (size “O” and larger)
  • Guided innervalve

Software

Specifications

Size
1/4…1 in.
Temperature Range
-450…1000 °F
Flow Range
0.00008…6.0 cv
Pressure Range
2500 PSI

Additional Specifications

Application Examples

Process Pilot Plants
Research
Liquid CO2
Hydrogen
Nitrogen

Industries
Aviation & Aerospace
Chemical, Refining & Petrochemical
Oil & Gas
Process or Industrial
Test Equipment & Services

Product Resources

To view some of the resources you will need Adobe Reader

Parts, Accessories & Other Options

Actuator, Electric (EVA-1)

Actuator, Electric (EVA-1) More Info Less Info

The Model EVA-1 is a small, electronically controlled valve actuator developed specifically to fit 1/4" to 1" Research Control Valves. Its accurate positioning and compact size make it especially suited to flow control in research and small process applications.

RCV Model EVA-1 Electronic Valve Actuator Manual (RCV-UM-00566-EN) RCV Model EVA-1 Electronic Valve Actuator Product Data Sheet (RCV-DS-00264-EN) USB to RS-232 Converter User Manual (INC-UM-00142-EN) Valve Application Data Sheet Form (941612) Valve Order Specification Sheet
Actuator, Pneumatic (Type 754)

Actuator, Pneumatic (Type 754) More Info Less Info

The Type 754 actuator is a pneumatically operated, spring-opposed diaphragm actuator designed specifically to fit the Research Control Valve body-bonnet assembly. The unit is available in two sizes: one to fit the 1/4" valve and a larger version to fit the 1/2" through 1" valves. It provides smooth linear retraction of the valve stem upon an increasing instrument signal. A decrease in instrument signal causes the stem to extend and close the valve. Downward closing force is generated by the spring, bearing on the diaphragm plate. An increasing pressure in the diaphragm cavity opposes the force of the spring and retracts the stem, opening the valve. The unit is designed to extend the stem, closing the valve, should the instrument signal fail.

RCV Type 754, 1/4 & 1/2 in. Standard Air-to-Open Actuator Assembly Product Data Sheet (RCV-DS-00266-EN) USB to RS-232 Converter User Manual (INC-UM-00142-EN) Valve Application Data Sheet Form (941612) Valve Order Specification Sheet
Actuator, Pneumatic (Type 755)

Actuator, Pneumatic (Type 755) More Info Less Info

The Type 755 actuator is a pneumatically operated, spring-opposed diaphragm actuator designed specifically to fit the Research Control Valve body-bonnet assembly. The unit is available in two sizes: one to fit the 1/4" valve and a larger version to fit the 1/2" through 1" valves. It provides smooth linear extension of the valve stem upon an increasing instrument signal. A decrease in instrument signal causes the stem to retract and open the valve. Downward closing force is generated by instrument air on top of the diaphragm. An increasing pressure in the diaphragm cavity opposes the force of the spring and extends the stem, closing the valve. The unit is designed to retract the stem, opening the valve, should the instrument signal fail.

RCV Type 755, 1/4 & 1/2 in. Standard Air-to-Close Actuator Assembly Product Data Sheet (RCV-DS-00267-EN) USB to RS-232 Converter User Manual (INC-UM-00142-EN) Valve Application Data Sheet Form (941612) Valve Order Specification Sheet
Actuator, Pneumatic (Type 759)

Actuator, Pneumatic (Type 759) More Info Less Info

The Type 759 actuator with integral, top-mounted positioner is a pneumatically operated, spring opposed diaphragm actuator designed specifically to fit the Research Control Valve body-bonnet assembly. The unit is available in two sizes: one for the 1/4" valve and another larger version for the 1/2" through 1" valves. The unit, when equipped with the model TLDA positioner, functions as an air-to-close actuator extending the stem and closing the valve on an increasing instrument signal. The unit is designed to retract the stem, opening the valve, on a decreasing or loss of instrument signal. A force-balance system is incorporated utilizing the full force of the supply air to position the stem precisely and with a high degree of repeatability. This type actuator should be used when the application calls for high positioning accuracy or when greater force is required over the standard actuator.

RCV Type 759, 1/4 & 1/2 in. Air-to-Close Positioner Actuator Product Data Sheet (RCV-DS-00268-EN) USB to RS-232 Converter User Manual (INC-UM-00142-EN) Valve Application Data Sheet Form (941612) Valve Order Specification Sheet
Actuator, Pneumatic (Type 766)

Actuator, Pneumatic (Type 766) More Info Less Info

The Type 766 actuator with integral, top-mounted positioner is a pneumatically operated, spring-opposed diaphragm actuator designed specifically to fit the Research Control Valve body-bonnet assembly. The unit is available in two sizes: one for the 1/4" valve and another larger version for the 1/2" through 1" valves. The unit, when equipped with the model BLRA positioner, functions as an air-to-open actuator retracting the stem and opening the valve on an increasing instrument signal. The unit is designed to extend the stem, closing the valve, on a decreasing or loss of instrument signal. A force-balance system is incorporated utilizing the full force of the supply air to position the stem precisely and with a high degree of repeatability. This type actuator should be used when the application calls for high positioning accuracy or when greater force is required over the standard actuator such as in the case of high shutoff pressures or excess packing friction.

RCV Type 766, 1/4 & 1/2 in. Air-to-Open Positioner Actuator Product Data Sheet (RCV-DS-00269-EN) USB to RS-232 Converter User Manual (INC-UM-00142-EN) Valve Application Data Sheet Form (941612) Valve Order Specification Sheet
