E-Series® Ultrasonic Meters  for Commercial Applications
E-Series

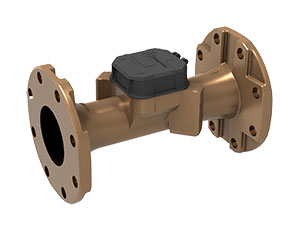

E-Series® Ultrasonic Meters for Commercial Applications

The Next Generation in E-Series Ultrasonic water meters from Badger Meter are designed for high measurement accuracy and long-term reliability. They are ideal for measuring potable cold water in commercial and industrial applications that experience wide and rapid fluctuations in water demand. Meter alarms provide early detection of flow, temperature, and pressure disturbances to help utilities understand and proactively manage their smart water meter reading systems faster and more efficiently. And, with no moving parts, the E-Series Ultrasonic meters offer increased performance to maximize revenue.

Benefits

  • No moving parts eliminates wear to extend performance over the life of the meter
  • Long-term sustained accuracy within +/- 1.5% and extended low flow accuracy within +/- 3%
  • Greater turn-down ratio for extended flow ranges and increased revenue
  • Meter data and alarms generated through analytics help utilities become healthier, prevent unauthorized use and decreases non-revenue water

Features

  • Open flow tube design
  • Fully electronic meter with programmable registration and reporting features
  • Meter alarms include empty pipe, exceeding max flow, reverse flow, leak, temperature, pressure & battery
  • Single and dual outputs include industry standard ASCII protocol, Scaled/Unscaled and 4-20mA
  • Fully submersible to withstand harsh environments
  • Lead-free bronze alloy housing complies with lead-free requirements of Safe Drinking Water Act
  • Compatible with Badger Meter ORION® family of endpoints

Specifications

Size
3 in. and 4 in.
Temperature Range
34...140 °F
Flow Range
3 inch: 0.75...560 gpm
4 inch: 1.5...1100 gpm
Pressure Range
Up to 175 PSI

Additional Specifications

Application Examples

Hospitals
Universities
Manufacturing
Process Facilities

Industries
Water Distribution

Product Resources

Document Name Document Type Last Updated
{{item.DocumentTypeName}} {{item.Date}}
To view some of the resources you will need Adobe Reader

Parts, Accessories & Other Options

Connections & Flanges

Connections & Flanges More Info Less Info

Badger Meter provides connections and flanges for Recordall Disc, Turbo Compound and E-Series Ultrasonic meters. Included are cast bronze connections in both straight and bent styles, plastic swivel connections, round and elliptical flanges in cast iron and bronze.

Connections and Flanges Selection Guide (UTL-LG-00244-EN)
