Ellipse® AHS Annular Hot Tap, Steam Flow Meter
Preso

Ellipse® AHS Annular Hot Tap, Steam Flow Meter

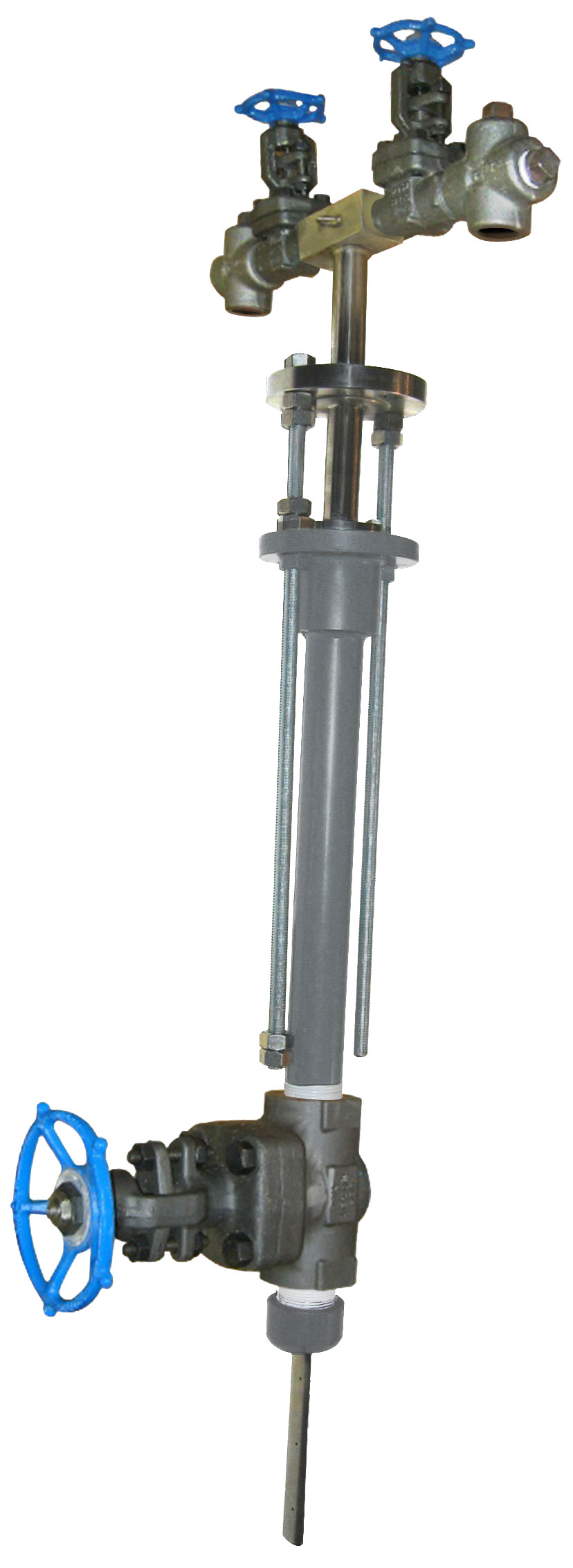

The Ellipse® Model AHS annular hot tap, steam flow device is a multi-ported, self-averaging differential pressure flow element. Its innovative elliptical shape provides the lowest permanent pressure loss in the industry. The Ellipse flow meter is designed with a series of ports facing the upstream velocity pressures and flow sensing ports strategically located ahead of the trailing edge flow separation.

Benefits

  • Elliptical design outperforms traditional devices
  • Turndown Ratio: 17:1; no vacuum effects
  • No moving parts equals long, trouble-free service life
  • True static pressure measurement rather than a calculated value
  • Overcomes loss of accuracy caused by fluid separation at the sensor body

Features

  • T-Type head, 316 SS 1/4 inch or 1/2 inch FNPT connection
  • CS 3000 lb weld fitting - ASTM A105
  • 316/316L SS Ellipse sensor
  • Instrument valves (2 per sensor) 1/4 inch or 1/2 inch, CS
  • 316 SS ID tag with wire
  • 150 lb 316/316L SS sensor flange
  • CS packing chamber with molythane or graphite packing gland
  • CS packing chamber flange, 150 lb with SS cap
  • 316 SS isolation ball valve, NPT threaded
  • CS threaded nuts and bolts
  • CS nipples, schedule 40
  • Optional: 316 SS rods, bolts and nuts
  • Optional: 316 SS packing chamber and flange
  • Optional: Temperature port with RTD output
  • Optional: Static pressure port with SS plug

Software

Specifications

Size
2...24 in.
Temperature Range
Up to 800 °F
Flow Range
5.3...10,570 gpm
Pressure Range
Up to 800 PSI
Accuracy
±0.75 %

Additional Specifications

Application Examples

Pharmaceutical

Industries
Building Automation / HVAC
Petrochemical, Refining & Chemical Metering
Oil & Gas Meters
Process or Industrial
Water & Wastewater Treatment
