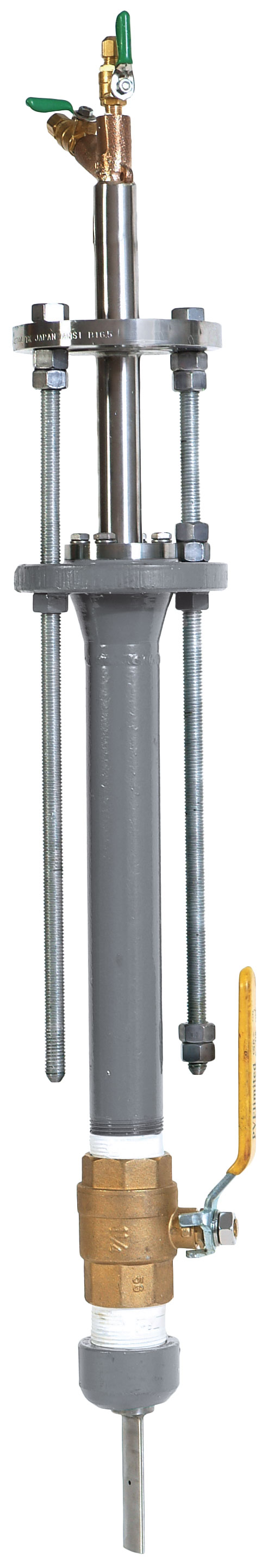

Ellipse® Model BHL Annular Hot Tap, Dual Rod Flow Meter
The Ellipse® Model BHL annular hot tap, dual rod flow device is a multi-ported, self-averaging differential pressure flow element. Its innovative elliptical shape provides the lowest permanent pressure loss in the industry. The Ellipse flow meter is designed with a series of ports facing the upstream velocity pressures and flow sensing ports strategically located ahead of the trailing edge flow separation.
Benefits
- No separation effects on the low (static) pressure
- Turndown ration of 17:1
- No vacuum effects
- No vortex generation
- Very high repeatability
- Lowest drag coefficient
Features
- Ellipse probe construction 316 Stainless Steel
- Hot Tap model
- Y-Type head, Brass 1/8 inch FNPT connection
- Polycarbonate ID tag with wire
- Instrument valves (2 per sensor) 1/4 inch SAE, brass
- Packing gland designed with Molythane with CS cage nipple and close nipple
- Optional: Brass ball valve with quick connect
- Optional: Double support
BHR 2...5 inch Ellipse (½ inch)
- Sensor Connection ¾ inch Brass compression w/SS ferrule
- Pipe Mounting ¾ inch 3000# CS thread-o-let
- Isolating Valve ¾ inch Bronze ball valve
BHR 6...12 inch Ellipse (⅞ inch)
- Sensor Connection 1 inch Brass compression w/SS ferrule
- Pipe Mounting 1-¼ inch 3000# CS thread-o-let
- Isolating Valve 1-¼ inch Bronze ball valve
BHR 14...24 inch ELLIPSE (1-¼")
- Sensor Connection 1-¼" Brass compression w/SS ferrule
- Pipe Mounting 1-½" 3000# CS thread-o-let
- Isolating Valve 1-½" Bronze ball valve
Software
Specifications
Size
2…24 in.
Temperature Range
Up to 250 °F
Flow Range
5.3…20,000 gpm
Pressure Range
Up to 400 PSI
Accuracy
(uncalibrated) ±0.75 %
Additional Specifications
Application Examples
Pharmaceutical
Industries
Process or Industrial
