Model 9000
Research Control Valve (RCV)

Model 9000

The Model 9000 valve is an ANSI Class 300 globe style valve with bolted bonnet and post guided innervalve. The valve is designed for a variety of industrial applications. The body, bonnet and innervalve are standard in 316SST or optional Alloy C. The standard body, configured in the Flangeless/NPT version, can be installed using NPT fittings or clamped between matching companion flanges.

Features

  • Designed to ANSI and ISA standards
  • Dual body mounting (NPT/Flangeless)
  • Wide range of innervalves
  • Linear, Equal Percent or On-Off
  • ANSI Class IV seat leak standard
  • Encapsulated body gasket
  • MoS2 filled nylon stem bushings
  • No brass or asbestos
  • Epoxy coated steel parts
  • Adjustable spring loading
  • Replaceable seats (Reduced Cv innervalves only)

Software

Specifications

Size
1...2 in.
Temperature Range
100…1000 °F
Flow Range
0.05…2.5 cv
Pressure Range
Up to 720 PSI

Additional Specifications

Application Examples

High Temperature Gas Control for Automotive Test Cell
Chemical Plants
Pulp and Paper Mills
Textile Mills
Refineries

Industries
Aviation & Aerospace
Chemical, Refining & Petrochemical
Oil & Gas
Process or Industrial
Test Equipment & Services

Product Resources

To view some of the resources you will need Adobe Reader

Parts, Accessories & Other Options

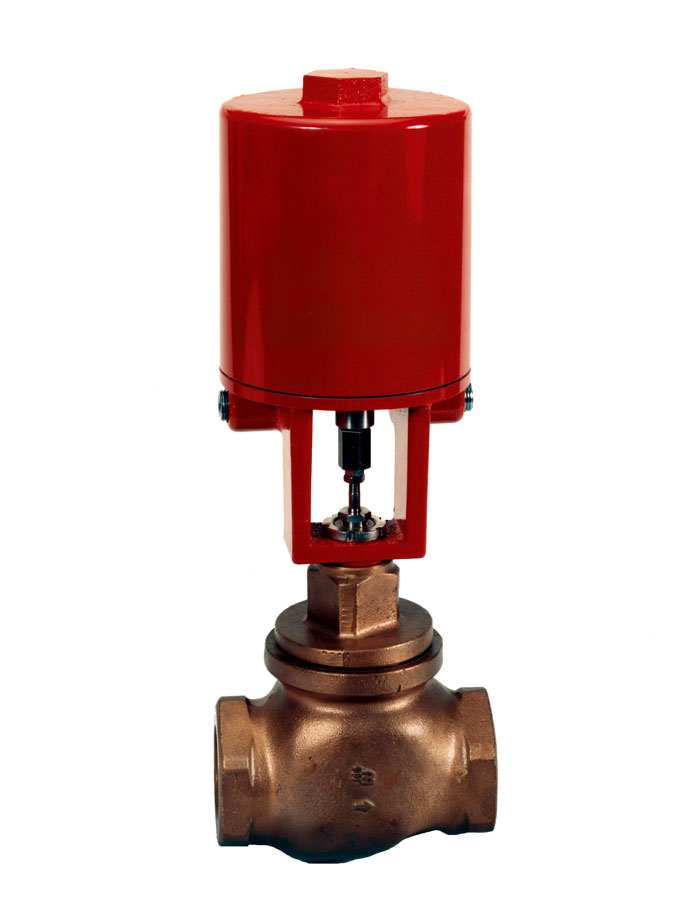

Actuator, EVA-100

Actuator, EVA-100 More Info Less Info

The EVA-100 is a multi-featured actuator with the capability to accept analog control signals.  The design provides smooth, highly accurate positioning, with positive position lock when not in motion. These rugged actuators withstand the most adverse environmental conditions. The EVA-100 was developed specifically to fit all Research Control Valves, including the larger Models 9000 & 9100. Their accurate positioning and high thrust make them well suited for all research and process applications.

RCV Model EVA 100 Electronic Valve Actuator Manual (RCV-UM-00585-EN) RCV Model EVA 100 Electronic Valve Actuator Product Data Sheet (RCV-DS-00262-EN) USB to RS-232 Converter User Manual (INC-UM-00142-EN) Valve Application Data Sheet Form (941612) Valve Order Specification Sheet
Actuator, Pneumatic (Type PA35)

Actuator, Pneumatic (Type PA35) More Info Less Info

The PA35 actuator is a 35 square-inch pneumatic, multi-spring diaphragm actuator designed specifically to fit the RCV product line. The actuator can be used with a wide range of valve solutions from larger process valves to high pressure applications. The actuator is field reversible (without additional parts) allowing flexibility within the field. This actuator is available air-to-open or air-to-close. The actuator comes with either 3 springs for a 3…15 psi signal range or 6 springs for a 6…30 psi signal range. Both ranges are adjustable to match bench loading with the requirements for your application. The yoke and the actuator housings are made of carbon steel and coated with epoxy for corrosion resistance.

RCV Type PA35 Multi-Spring Pneumatic Actuator Product Data Sheet (RCV-DS-00618-EN) USB to RS-232 Converter User Manual (INC-UM-00142-EN) Valve Application Data Sheet Form (941612) Valve Order Specification Sheet
