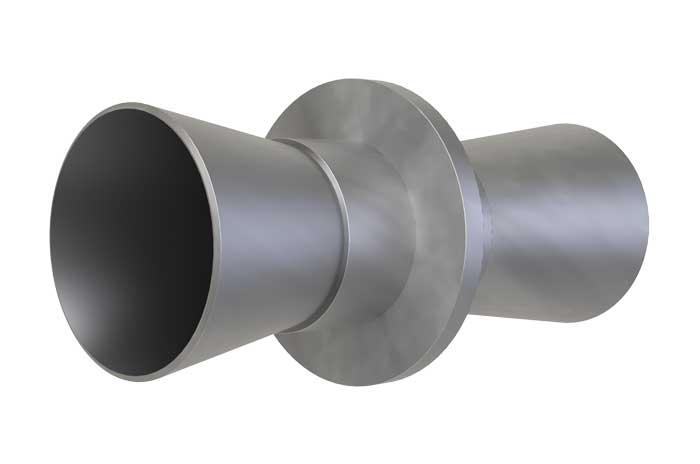

The Venturi Model VISSL (Insert Type Classical Venturi Design) is a Hershel/Classical design differential pressure flow device. The insertion style meter adds only the thickmess of the meter center flange to the overall length of the pipe.  The Venturi flow meter restricts the flow at its throat, increasing the velocity of the fluid, and measures the pressure difference of the unrestricted flow and restricted flow. The meter's throat can be designed to meet the flow measurement application optimizing the meter's accuracy and permanent pressure loss.

Benefits

  • Low Installation and operation costs
  • Resists wear, maintenance free (no moving parts)
  • Minimal straight pipe distance requirements
  • Turndown ratio of 10:1
  • Repeatability of ± 0.1%
  • Mounts in any position
  • Low permanent pressure-loss design

Features

  • A venturi provides longevity, reliability and long term performance.
  • Provides an un-calibrated accuracy of ±0.75% with a repeatability of ±0.1%
  • Is designed in accordance to ASME and ISO standards and it offers the highest “As Built” accuracy
  • Provides lowest level of permanent pressure loss of any Venturi style, significantly less than orifice plates
  • The insertion style meter adds only the thickness of the flange to the overall length of the pipe length
  • Standard and Unique Alloys
  • Durable solution for liquids, gas, steam and mixed media
  • With minor modifications the SSL can be transformed into a bi-directional flow meter
  • Easily installed in any position with minimal straight pipe requirements (5 pipe diameters upstream and 2 pipe diameters downstream
  • Also known as “Classical” or Herschel”
  • Optional: RTD

Software

Specifications

Size
3...36 in.
Temperature Range
Up to 1500 °F
Flow Range
0.25...220,000 gpm
Pressure Range
Up to 9000 PSI
Accuracy
(uncalibrated) ± 1 %
(calibrated) ± 0.5 %
