TFX-500w Ultrasonic Clamp-on Flow Meter
Dynasonics

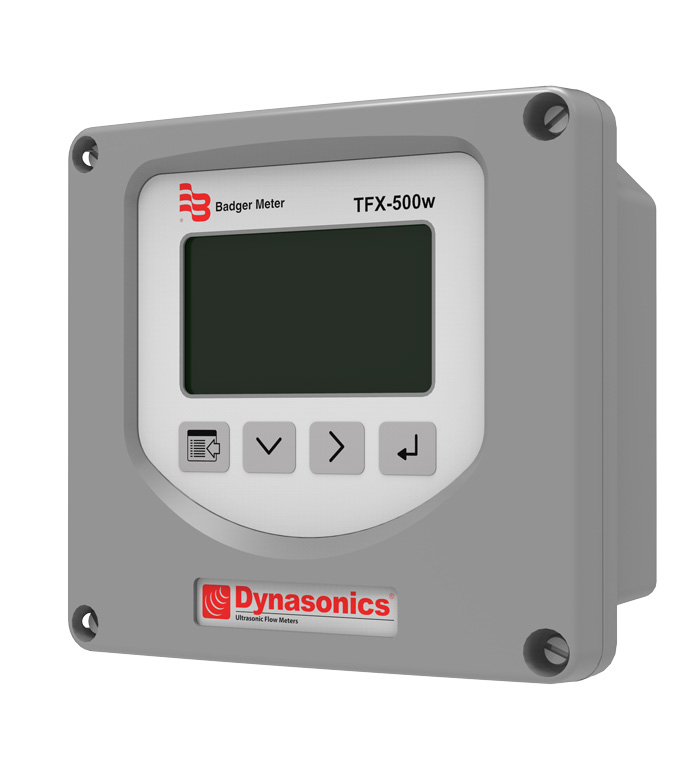

TFX-500w Ultrasonic Clamp-on Flow Meter

The TFX-500w ultrasonic clamp-on flow meter is quickly and easily installed without cutting or tapping the pipe.  Ultrasonic waves transmit upstream and downstream through the pipe wall and water flowing in the pipes. By measuring the difference in the travel time and knowing the pipe size, the meter determines the velocity and flow rate.  TFX-500w flow meters are a cost effective meter for measuring water flow in a variety of applications.

Benefits

  • Retrofit existing pipes without shutting down the system
  • Reduce installation time and material costs
  • No moving parts to maintain
  • No pressure head loss

Features

  • Non-invasive clamp-on ultrasonic transit time flow meter
  • Bidirectional, full pipe flow measurement
  • Measures flow rate, total and velocity of water flow
  • Large easy to read display
  • Set up through keypad interface and SoloCUE software
  • Connects to BEACON® AMA and AquaCUE flow analytics
  • Modbus RTU and BACnet MS/TP communications

Software

Specifications

Size
1/2...10 in.
Temperature Range
-40...250 °F
Flow Range
0.1...9800 gpm

Additional Specifications

Application Examples

Water system
Wastewater effluent
Agriculture irrigation
Industrial discharge

Industries
Building Automation / HVAC
Facility or Property Management
Irrigation
Water & Wastewater Treatment
Water Distribution

Product Resources

Document Name Document Type
{{item.DocumentTypeName}}
To view some of the resources you will need Adobe Reader

Parts, Accessories & Other Options

DTTC Transducer

DTTC Transducer More Info Less Info

Clamp-on transducers that are suitable for pipes ½ …2 inch with a temperature range of -40…194° F (-40…90° C).  Transducers are matched to the pipe size and material for the best accuracy and can be ordered integral to the transmitter or remote mounted.

Remote mount transducers include stainless steel straps and can be ordered with flexible armored conduit.

DTTN Transducer

DTTN Transducer More Info Less Info

Clamp-on transducers that are suitable for pipes 2 inches and larger with a temperature range of -40…194° F (-40…90° C).  The upper end of the pipe range varies with ultrasonic properties of the liquid and pipes.  For water in PVC pipe, DTTL transducers are recommended on pipes 24 inches or larger.  DTTN transducers are also available with intrinsic safety and for submersible applications.

Transducers include stainless steel straps and can be ordered with flexible armored conduit.

DTTR Transducer

DTTR Transducer More Info Less Info

Clamp-on transducers that are suitable for pipes 2 inches and larger, with a temperature range of -40…250° F (-40…121° C).  The upper end of the pipe range varies with ultrasonic properties of liquids and pipes.  For water in PVC pipe, DTTL transducers are recommended on pipes 24 inches or larger.

Transducers include stainless steel straps and an optional rail kit is available to promote easier installation.  Transducers can be ordered with flexible armored conduit.
